Diaphragm accumulator Factory

Diaphragm accumulator

Diaphragm accumulator

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. The company took part in the establishment of accumulator type national standard.
contact us

Product Details

Summary
GXQ series diaphragm accumulators are used to absorb pulsation, shock, and compensation for leakage.

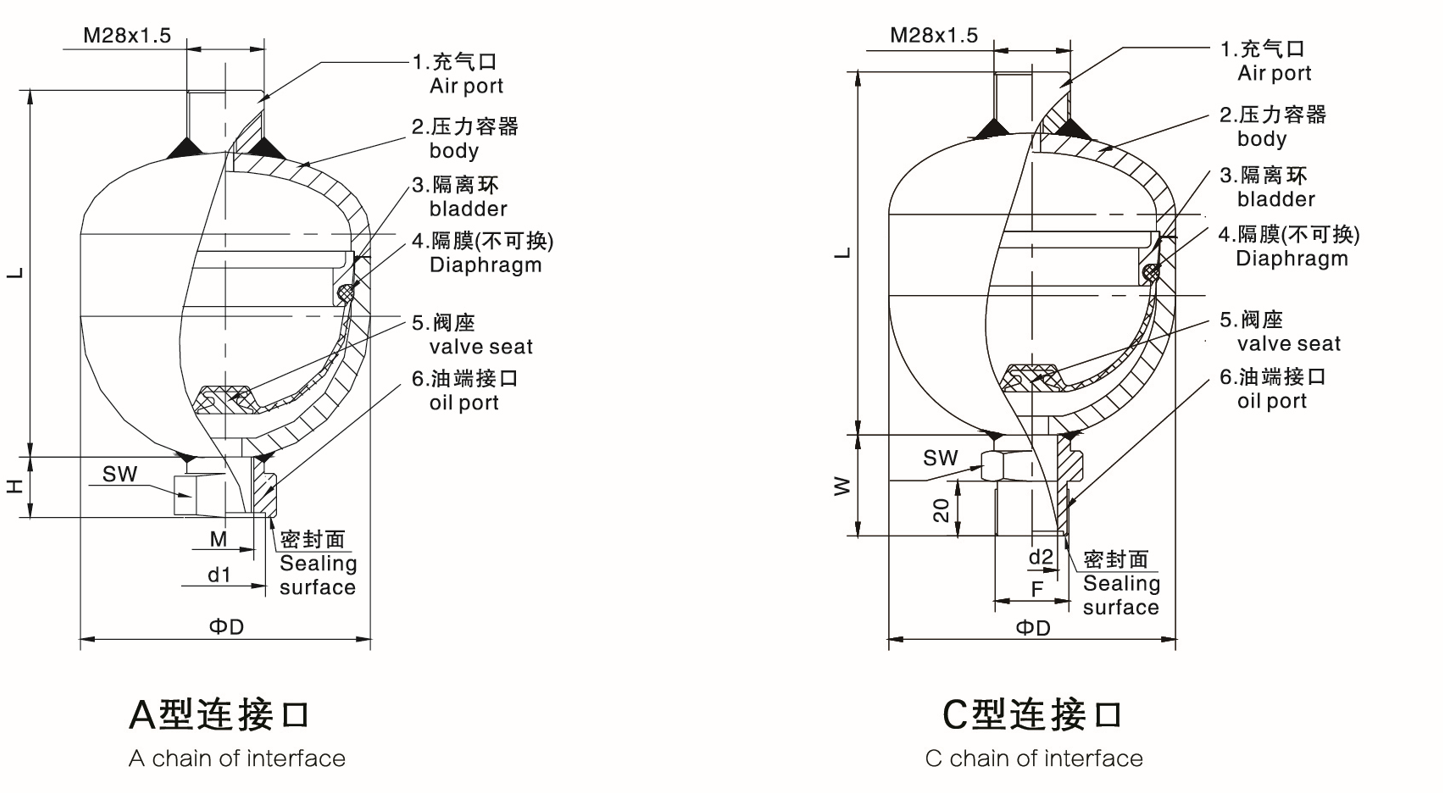

2. Internal structure
Diaphragm accumulator type: welded
Type A welding type: welded pressure vessel, the gas end can be GCQJ produced by our company
The inflatable tool is inflated, and the oil end connection can have many types: flexible diaphragm (not replaceable), used to isolate oil and gas. The valve seat at the bottom of the diaphragm.

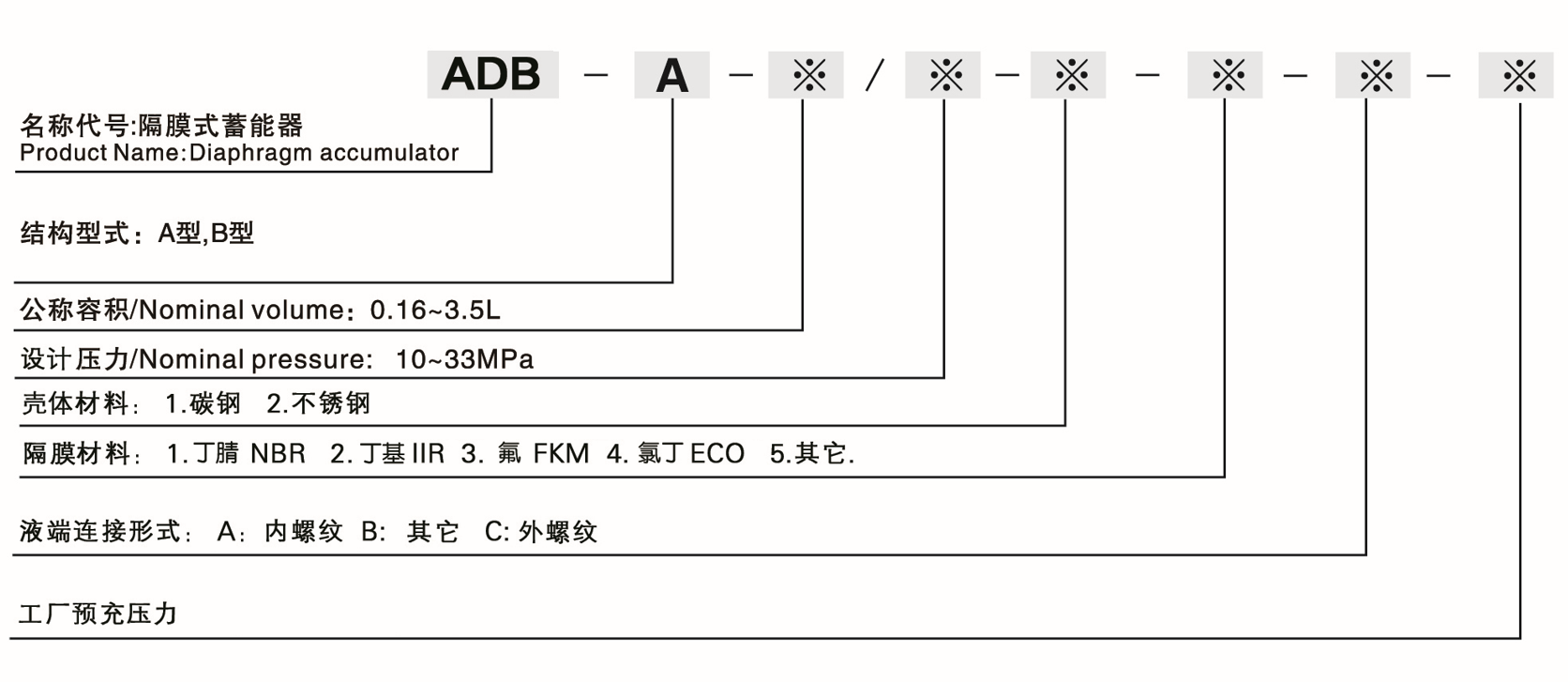

3. Model description

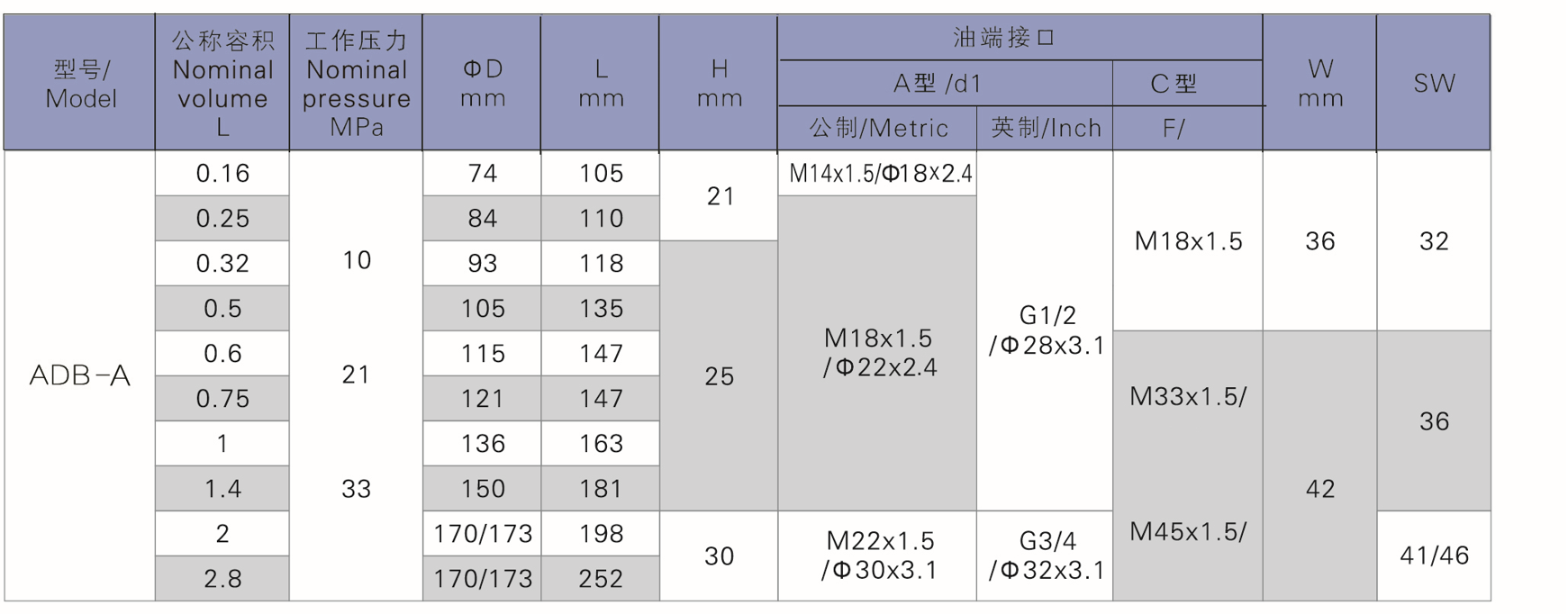

4. Internal structure and dimensions



1. Type A diaphragm accumulator

5. ordering instructions
① The full name of the model code must be stated when ordering, such as: the nominal volume is 0.75L, the design pressure is 21MPa, the shell material is carbon steel, the diaphragm material is NBR threaded connection, and the pre-charged pressure 5MPa welded diaphragm accumulator, ADB -A-0.75/21-1-1-A-5
② If there are special requirements for the interface size of the diaphragm accumulator, please consult with our company.
③ The company reserves the right to change the design without prior notice.


Related products

  • 15000m²
    Factory Area
  • 1978
    Founded
  • ISO9001
    Quality Certification
  • 45+
    Export Country

Company Profile

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom Hydraulic Diaphragm Accumulators Manufacturers,The company took part in the establishment of accumulator type national standard.

In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.

Certifications

  • business license

  • Special equipment design license

  • Special equipment manufacturing license

  • Quality Management System Certification ISO English

  • ASME certificate-002

  • Quality management system certification ISO1

  • CE

NEWS

Provide you with the latest corporate and industry news

Here are some benefits and drawbacks of using a diaphragm accumulator:

Benefits:
Simple design: A diaphragm accumulator has a simple design, which makes it easy to manufacture and maintain.
Low cost: Diaphragm accumulators are generally less expensive than other types of accumulators, such as piston accumulators.
No metal-to-metal contact: A diaphragm accumulator does not have any metal-to-metal contact, which reduces the wear on the accumulator and increases its lifespan.
Drawbacks:
Low efficiency: Diaphragm accumulators are not as efficient as piston accumulators, which means they may not be suitable for high-pressure systems or applications where a high amount of energy needs to be stored or released.
Limited pressure range: Diaphragm accumulators have a limited pressure range, which means they may not be suitable for use in systems with very high or very low pressures.
Limited temperature range: Diaphragm accumulators have a limited temperature range, which means they may not be suitable for use in systems with extreme temperatures.

A diaphragm accumulator is a type of hydraulic accumulator that uses a flexible diaphragm to separate the gas and fluid in the accumulator. The diaphragm is attached to a rod, and the movement of the diaphragm causes the rod to move. This movement can be used to perform work in the hydraulic system.
