CDZ-Y1 N2 Charging Vehicle
N2 Pressurization
CD-Y1Nitrogen Charging Vehicle works as a special N2 pressurizer and charging device of hydraulic accumulator, piston accumulator, diaphragm accumulator and other high-pressure vessel of NXQ series. Max N2 pressure is 42MPa.
Advantages of CDZ-Y1 N2 Charging Vehicle
High Pressure Safety
Up to 42MPa output, equipped with dual safety valves
Portability and Convenience
Wheeled design, ready to use on-site
Precise Filling
High-accuracy pressure gauge, stable and controllable filling process
Durable and Reliable
All stainless steel piping, corrosion-resistant seals
Ordering Code & Technical Parameter You Can Choose
CDZ
Product Name
Nitrogen charging vehicle
*
Nominal Pressure
25/35/42Mpa
Y1
Reversing Type
Hydraulic Pilot
| Model | Pa in | Max Pa in | Pump | Pressurizer | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
| Pressure | Flux | Rate | Times/min | ||||
| CDZ-25Y1 | 3~13.5 | 25 | 7 | 16 | 1:6 | 8 | 285 |
| CDZ-35Y1 | 3~13.5 | 35 | 7 | 16 | 1:06 | 8 | 285 |
| CDZ-42Y1 | 3~13.5 | 42 | 7 | 16 | 1:07 | 8 | 285 |
Operating Principle of CDZ-Y1N2 Charging Vehicle
The Nitrogen Charging Vehicle consists of hydraulic device, gas device and electric device. The pressure fluid flows into the pressurizer through reversal valve to push the piston move upward (downward) to pressurize the N2 in the pressurizer and then flow into the accumulator (or high-pressure Vessel) through holding valve. N2 is pressurized to the operating pressure by the reciprocating movement of piston (less than 42 Mpa).
WHERE TO APPLY
- Gas Pressurization : Charge or pressurize accumulator, aero tire, and high-pressure vessel, telecommunication cable with N2 or inert gases.
- Pipe Pressure Test : N2 or inert gases in aerospace, oil field, refining, automobile, instruction.
- Gas Replenishment : Chemical processes, plastic processes.
- Gas Resus : Recover the gas or inert gas left in the nitrogen cylinder to high-pressure vessel for further usage.
- Gas Output and Charing : N2, inert gases.
Why Choose Us

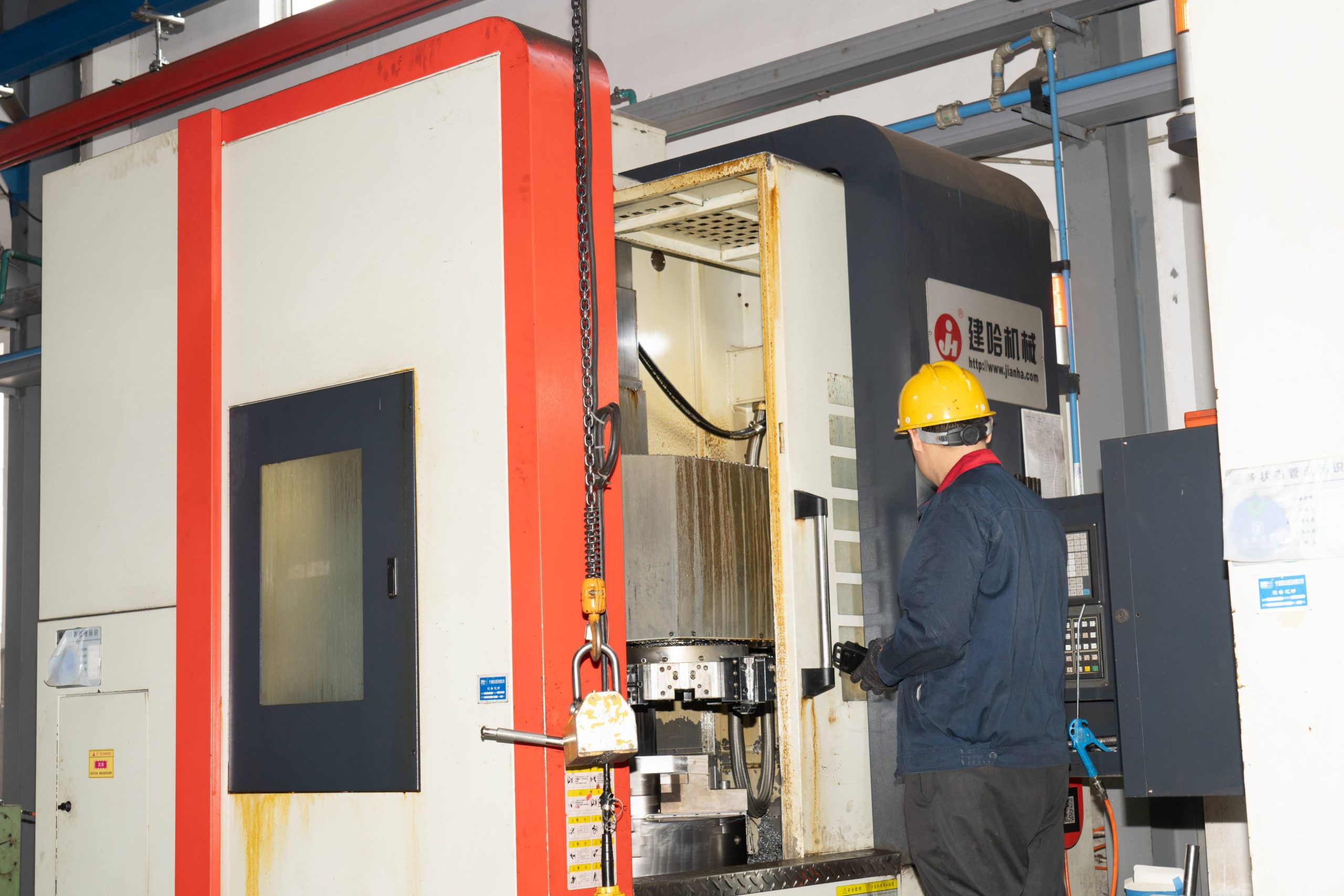

We have our own production workshops and warehouses, equipped with complete production and quality testing equipment.
After-sales Service
We provide professional, accurate, patient, and efficient solutions to your hydraulic accumulator manufacturing problems.
Customer Philosophy
Our company's customer philosophy is to create irreplaceable value for our customers through high-quality products and services.
Manage
Philosophy
Our management belief is to respect value and pursue a management philosophy of autonomy and self-motivation.
High-quality Products
Innovation adds value to our products. We have a strong R&D team with the strength to face challenges and bring our ideas to market.
Qualification Certificate
Learn more about cooperation
Contact Us Now
FAQ
The following are solutions to common problems. If you have further technical questions, please feel free to contact us.
Q1: What is the main function of an accumulator?
A: An accumulator stores hydraulic energy in the form of pressurized fluid. It helps maintain system pressure, absorb shocks, and provide additional flow during peak demand or emergency situations.
Q2: What are the common types of accumulators?
A: The most common types are bladder, piston, and diaphragm accumulators. Each type differs in structure and is selected based on pressure requirements, capacity, and application conditions.
Q1: What is included in an accumulator station?
A: An accumulator station typically includes the accumulator unit, pump, motor, control valves, pressure gauges, safety components, and a hydraulic reservoir, all integrated into a single system.
Q2: Why is an accumulator station important in hydraulic systems?
A: It stabilizes pressure, reduces energy consumption, minimizes pump wear, and ensures reliable system performance during fluctuating load conditions.
Q1: What are common accumulator accessories?
A: Common accessories include safety blocks, shut-off valves, pressure gauges, charging kits, mounting brackets, and protective covers, all of which support safe operation and maintenance.
Q2: Why are accessories necessary for accumulators?
A: Accessories enhance safety, enable proper monitoring, simplify maintenance, and ensure the accumulator operates efficiently and within design limits.
Q1: What is the function of a safety valve block?
A: A safety valve block protects the accumulator and system by controlling pressure, isolating the accumulator when needed, and safely releasing excess pressure.
Q2: What components are typically found in a safety valve block?
A: It usually includes a relief valve, shut-off valve, pressure gauge port, and sometimes a drain or discharge valve, all integrated into a compact unit for safety and convenience.
