47 Years of Excellence in Hydraulic Pressure Control.

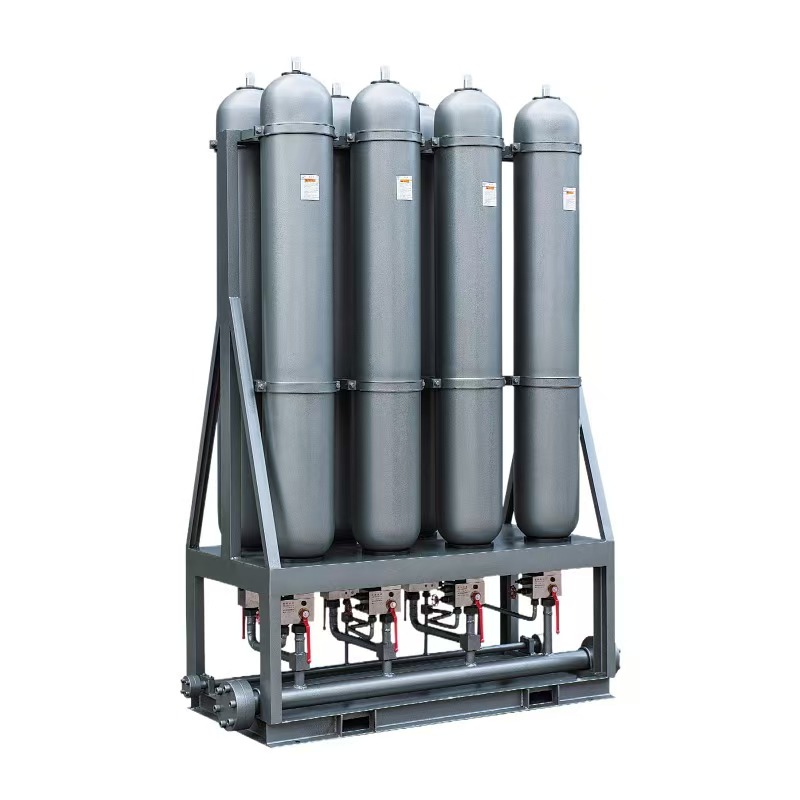

Fixed bolster,bladder type accumulator,control valve group,ball valve,pipeline,oil return pipe,etc.

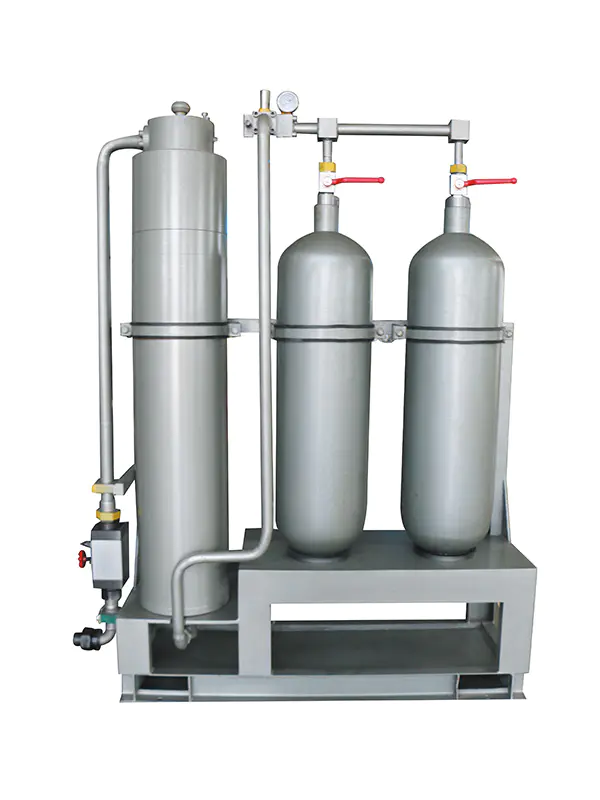

Fixed bolster,piston accumulator,control valve group,ball valve,gas protection valve,nitrogen cylinder group,etc.
A hydraulic accumulator station is a critical hydraulic system utilized for energy storage, pressure stabilization, and system protection. As a leading manufacturer with 47 years of industry-leading experience, Ningbo Chaori Hydraulic offers a comprehensive range of hydraulic accumulator rank station products.
We provide a diverse array of solutions—ranging from accumulator stations specifically designed for large-scale energy storage to systems engineered to enhance overall stability—thereby offering highly reliable support for accumulator systems. Our team specializes in the design and integration of accumulator stations, with a dedicated focus on optimizing equipment operational efficiency and safety.
An accumulator station is a centralized hydraulic energy storage system that integrates multiple accumulators with control, protection, and connection components into a single coordinated unit. It is designed to store and release hydraulic energy efficiently, helping to maintain stable system pressure and support dynamic load demands.
By combining accumulators in a structured configuration, an hydraulic accumulator rank station enables higher storage capacity and more controlled energy distribution compared to standalone units. It plays a critical role in smoothing pressure fluctuations, absorbing hydraulic shocks, and improving overall system responsiveness.
In addition, an hydraulic accumulator system can provide reliable backup power for essential hydraulic functions during pump failure or power loss, ensuring continuous and safe operation in demanding industrial and mobile applications.
A flexible bladder separates hydraulic oil from the pre-charged gas within the accumulator. As hydraulic fluid enters the shell, the gas is compressed, storing energy.
When system pressure drops, the compressed gas expands, forcing the stored oil back into the circuit to maintain pressure and deliver energy where needed.
Provides extremely fast response due to the direct interaction between gas and fluid, making it highly effective for absorbing pressure shocks, reducing pulsations, and stabilizing dynamic hydraulic systems with frequent load changes.
Primarily suited for medium-pressure applications. The allowable pressure range is determined by the mechanical properties and durability of the bladder material, which must withstand repeated deformation under cyclic loading conditions.
Typically available in small to medium volume ranges. Well-suited for systems requiring compact design, rapid energy exchange, and efficient space utilization without compromising performance.

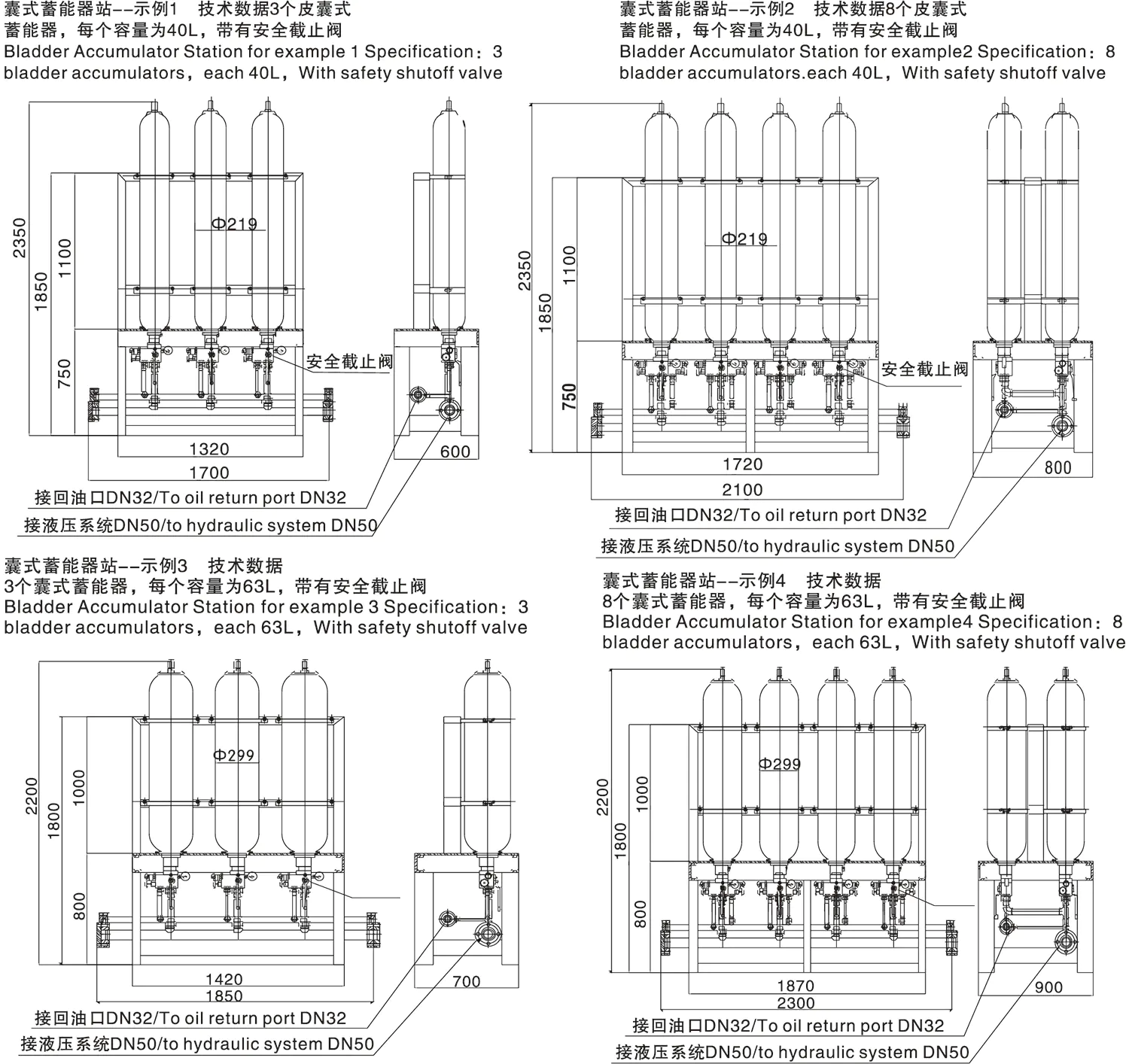

NZ — ※₁ × ※₂ / ※₃ – ※₄
NZ : Product Name
※₁ : Quantity of accumulator, expressed in Arabic numerals
※₂ : Volume of each Bladder accumulator / L
※₃ : Working pressure of accumulator station / Mpa
※₄ : Medium : Y-Hydraulic liquid, R-Emulsion
A piston separates the hydraulic oil and gas within the accumulator and moves linearly inside the cylinder. As oil enters, the piston compresses the gas to store energy; when system pressure decreases, the gas expands, pushing the piston back to discharge oil. It can also be combined with external gas bottles to increase total storage volume.
Slightly slower than bladder types due to piston mass and seal friction. However, it offers stable and consistent performance, especially in systems requiring controlled flow and predictable response characteristics.
Well-suited for high-pressure applications, with a robust structure that allows it to withstand heavy loads and harsh operating conditions. The design enables reliable operation under continuous high-pressure cycles.
Capable of large storage volumes and flexible capacity expansion. Multiple piston accumulators or external gas cylinders can be connected to meet higher energy storage requirements in large-scale hydraulic systems.

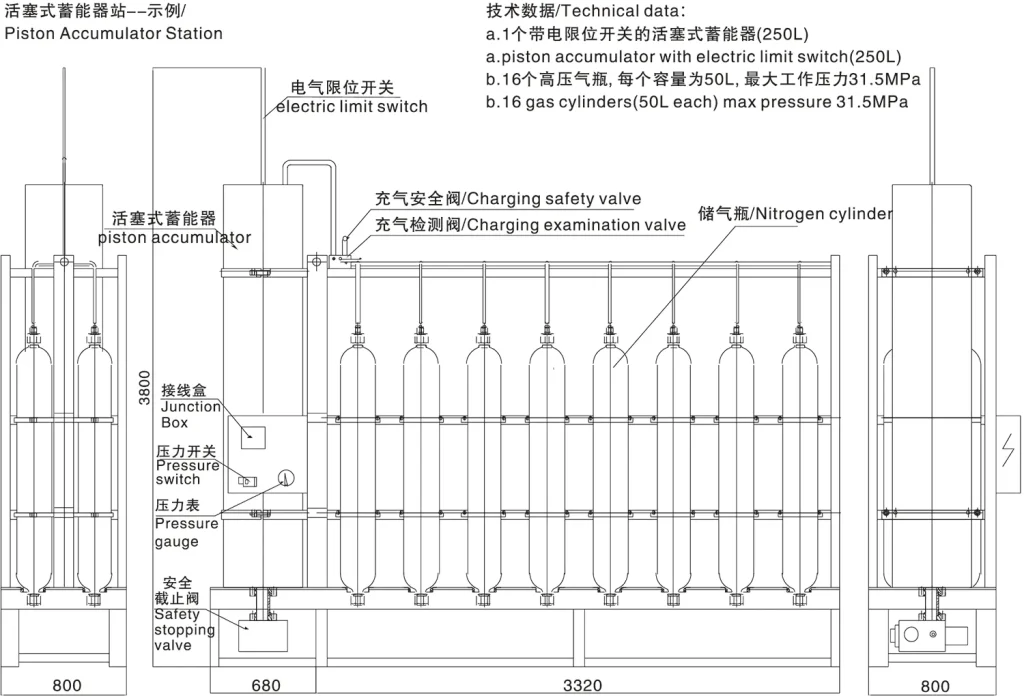

HZ — ※₁ × ※₂ / ※₃ × ※₄ / ※₅ – ※₆
※₁ : Quantity of accumulator, expressed in Arabic numerals
※₂ : Volume of each Bladder accumulator
※₃ : Quantity of gas bottle, expressed in Arabic numerals
※₄ : Volume of each gas bottle / L
※₅ : Working pressure of accumulator station / Mpa
※₆ : Medium : Y-Hydraulic liquid, R-Emulsion

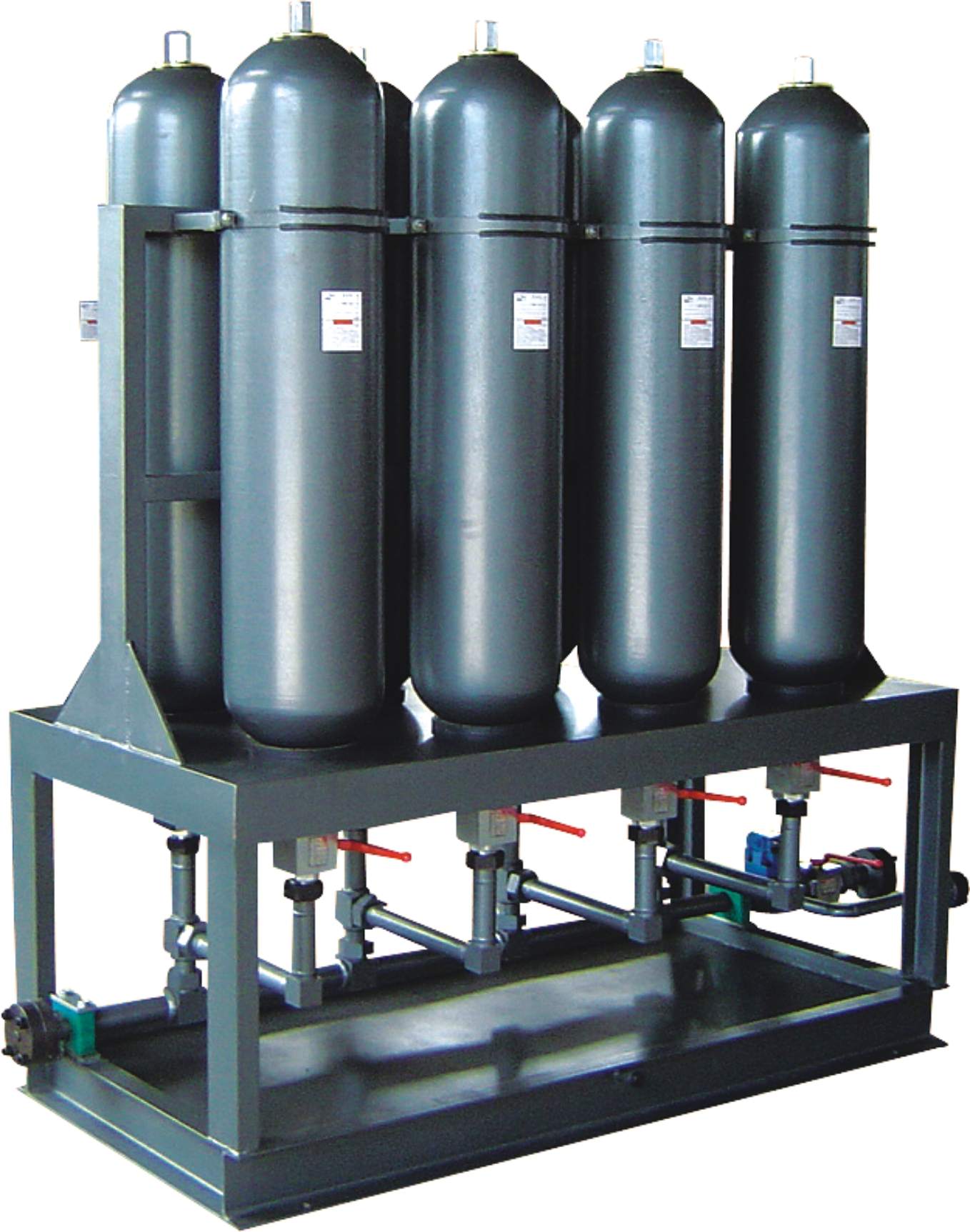

Chaori hydraulic corporation offers a comprehensive range of bladder accumulator stations, including fixed mounting brackets, bladder accumulators, control valve blocks, ball valves, inlet and outlet oil lines, return lines, and other components.

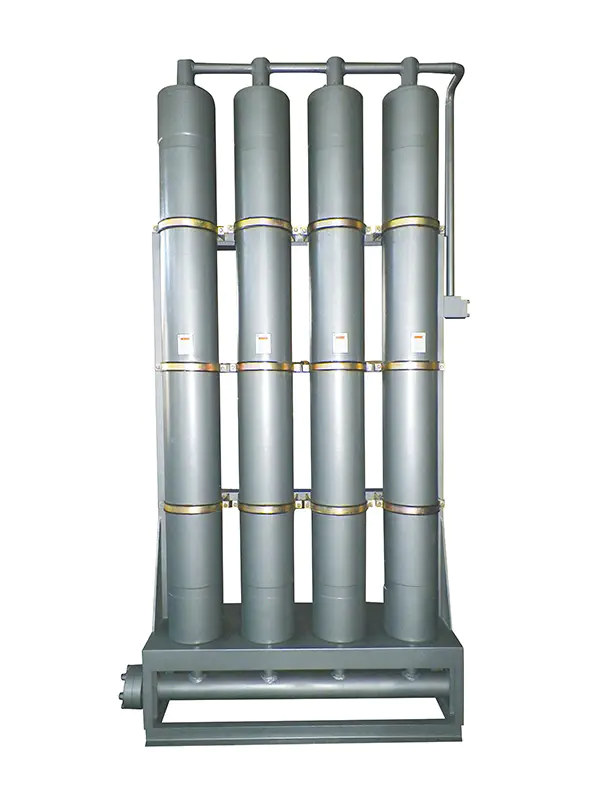

Also, we offer a comprehensive range of piston-type accumulator stations, including fixed mounting brackets, piston accumulators, control valve blocks, ball valves, gas safety valves, gas cylinder banks, and more.
We are proud to be a key contributor to the establishment of the China national standard for accumulators. This means every nxq accumulator we produce follows the highest technical guidelines and safety protocols in the industry.
Quality is our priority. Our 18,000 sqm facility is equipped with state-of-the-art manufacturing machines and high-precision detecting instruments to ensure that every hydraulic accumulator cylinder meets your exact project specifications.
Since 1978, we have continuously expanded our production capacity to meet rising global demand. Our large-scale factory in Ningbo allows us to produce everything from a small accumulator to a massive 300l accumulator with consistent, repeatable quality.
Our commitment to safety is proven by our extensive certifications. We hold the ISO9001-2000, ASME “U” stamp, and EU CE certificates, making us a qualified supplier for aerospace hydraulic accumulator and mission-critical industrial projects worldwide.
∇ Large-Scale Energy Storage
Multiple accumulators are connected in parallel to significantly increase total energy storage capacity, enabling the system to handle peak demand and high-load operating conditions.
∇ System Pressure Stabilization
Maintains stable system pressure across large-scale hydraulic systems, effectively reducing pressure fluctuations and ensuring consistent performance under variable loads.
∇ Shock Absorption
Effectively absorbs pressure surges and hydraulic shocks generated during operation, protecting system components and improving overall reliability.
∇ Emergency Power Support
Provides backup energy to sustain critical functions in the event of power loss or pump failure, ensuring safe and continuous system operation.
| Accumulator | Accumulator Station | |
|---|---|---|
| Flow Supply | Delivering high flow rates to meet demanding operational requirements | Restricted flow output |
| System Integration | Fully integrated system with valves, piping, and control components | Standalone component requiring additional system design |
| Maintenance Efficiency | Easier monitoring and maintenance with centralized layout | Maintenance handled individually |
| Safety | Equipped with a safety valve and control system to provide enhanced protection | Basic safety features only |
| Scalability | Easily expandable by adding more accumulators | Not easily scalable |
It is also commonly called an accumulator tank, hyd accumulator, pressure bottle, or pulsation dampener (when used for smoothing fluid flow).
A typical accumulator assembly consists of a high-strength steel shell, an internal separator (bladder, piston, or diaphragm), an oil port, and a gas valve for nitrogen pre-charging.
The bladder accumulator is the most widely used due to its rapid response and versatility. However, diaphragm types are preferred for compact mobile systems, and piston types for high-volume, heavy-duty applications.
It uses gas compressibility. Hydraulic fluid enters the accumulator cylinder and compresses the pre-charged nitrogen. When system pressure drops, the compressed gas expands, forcing the fluid back into the circuit.
Absolutely. With 47 years of experience, our products hold ASME, CE, and ISO9001 certifications, ensuring compliance with international safety and quality protocols.
Yes. We design and manufacture custom accumulator banks and skids tailored to large-scale energy requirements, offering volumes up to 300L or more with integrated safety blocks.
Nitrogen is an inert gas, making it safe and stable. Unlike oxygen, it won’t react with hydraulic oil or risk internal combustion/oxidation under high pressure and temperature.
As hydraulic accumulator manufacturers in China, we are committed to integrity and excellence, delivering high-quality products and superior service.
Share your accumulator requirements for a specialized solution or engineering support.
