Fixed bracket for
NX type accumulator
The Fixed Bracket for NX Type Accumulator is designed to securely mount and stabilize NX accumulators. It offers strong support, easy installation, and reliable performance in hydraulic systems.
Advantages
of
NX Type Accumulator
Mounting Bracket
Secure Mounting
Ensures firm fixation and prevents unwanted movement during operation.
Quick Installation
Simple design enables fast setup and reduces installation time.
High Durability
Robust materials provide long-lasting performance in harsh environments.
Stable Performance
Maintains consistent support, improving overall hydraulic system reliability.
Ordering Code & Technical Parameter You Can Choose
NX-KG
Code Name
Hoop For Accumulator
ɸ※
Diameter:
ɸ89~ɸ426

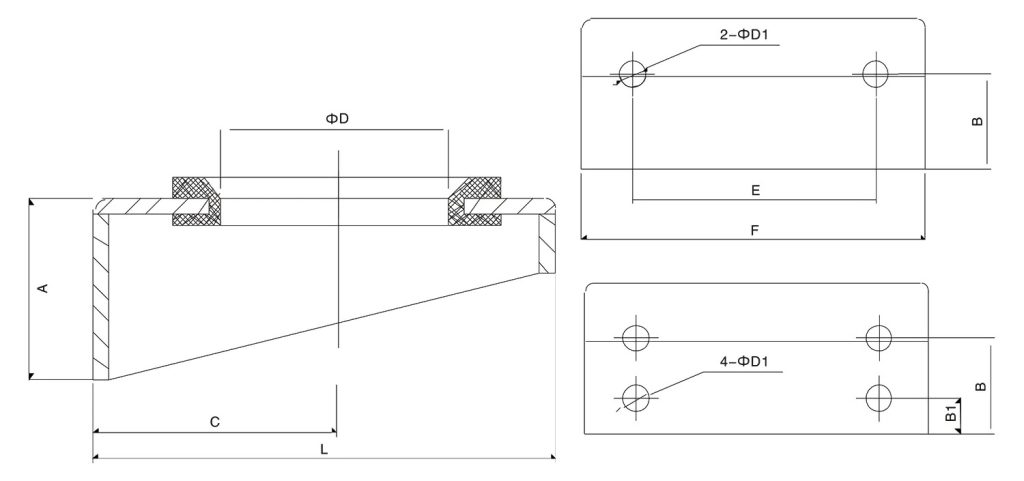

| Model | A | B | C | ΦD | ΦD1 | E | F | B1 | L | Equipped with accumulator | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NX-TJ/Φ89 | 45 | 23 | 62.5 | Φ60 | 2-Φ9 | 60 | 98 | / | 112 | NXQ-0.4L ~0.63L | 0.8 |
| NX-TJ/Φ114 | 50 | 28 | 75 | Φ60 | 2-Φ9 | 70 | 126 | / | 138 | NXQ-1L | 1 |
| NX-TJ/Φ152 | 65 | 35 | 96 | Φ88 | 2-Φ13 | 113 | 162 | / | 178 | NXQ-1.6L~6.3L | 2 |
| NX-TJ/Φ219 | 100 | 62 | 133 | Φ125 | 4-Φ17 | 160 | 226 | 22 | 252 | NXQ-10L~40L | 7 |
| NX-TJ/Φ299 | 100 | 62 | 173 | Φ140 | 4-Φ17 | 200 | 306 | 22 | 332 | NXQ-20L~100L | 12 |
| NX-TJ/Φ351 | 120 | 70 | 212 | Φ170 | 4-Φ17 | 280 | 360 | 30 | 412 | NXQ-63L~160L | 20 |
| NX-TJ/Φ426 | 120 | 70 | 237 | Φ220 | 4-Φ17 | 300 | 435 | 30 | 462 | NXQ-125L~250L | 24 |
Operating Principle of NX Type
Accumulator Mounting Bracket
The full name of the model code must be stated when ordering, such as: the accumulator has a nominal volume of 25L and a diameter of 299. Clamp: NX-TJ/05299. (Include rubber pad)
If there are special requirements for the clamp, please consult with our company.
The company reserves the right to change the design without prior notice.
