CQP Niteogen Tank
The gas container stores energy.in hydraulic and pneumatic systems, it can store energy and stabilize pressure.lt has the advantage of big volume,small powerand compact size.The gas containers adopt seamless steel tube thermal stretch spinning technique and have the advantages of high reliability, pretty appea rance, and steady capability and So on. They have been widely used in mechanical industry and military industry.
Advantages
of
CQP Niteogen Tank
Large Energy Storage
High-capacity energy storage and pressure stabilization.
Compact Structure
Small size with low power consumption.
High Reliability
Made with seamless steel tube spinning technology.
Wide Application
Stable performance for mechanical and military use.

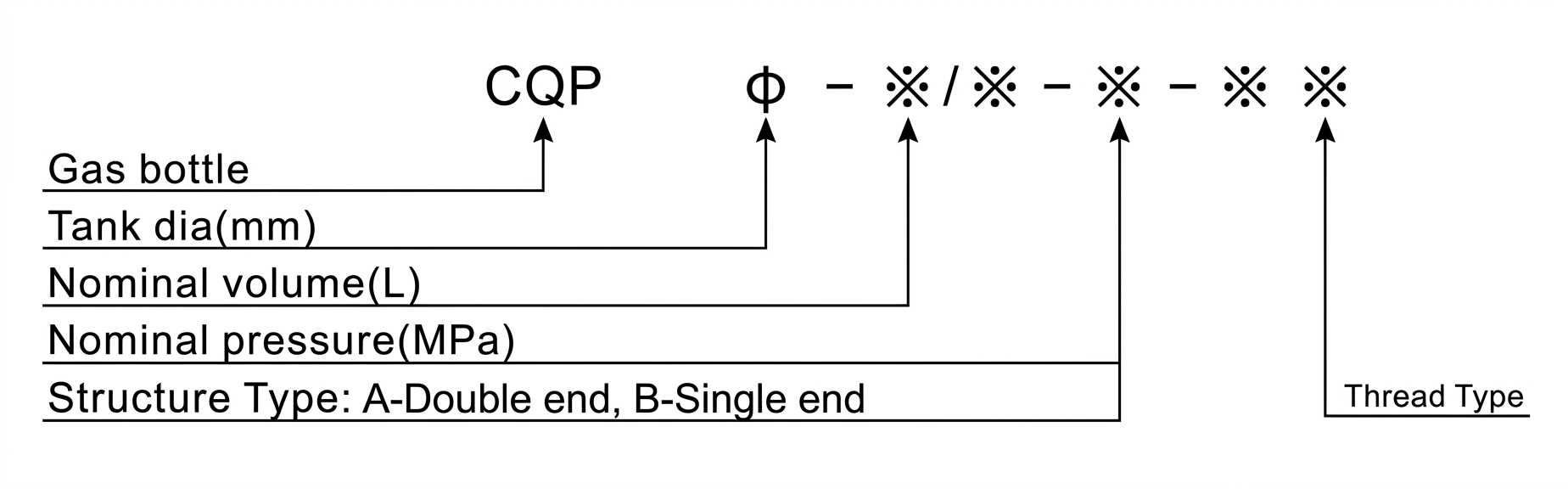

Ordering Code & Technical Parameter You Can Choose
Outer diameter ɸD (mm)
| Model | Volume (L) | Dimensions (mm) | Connection thread | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|
| Type A | Type B | M1 | M2 | Type A | Type B | ||
| CQP219-10/20-※ | 10 | 540 | 480 | Type I: M60×2 Type II: M30×1.5 | M30×1.5-6H (Φ38×3.1) | 25 | 22 |
| CQP219-16/20-※ | 16 | 740 | 680 | 34 | 32 | ||
| CQP219-25/20-※ | 25 | 1030 | 970 | 48 | 45 | ||
| CQP219-32/20-※ | 32 | 1250 | 1190 | 58 | 56 | ||
| CQP219-40/20-※ | 40 | 1510 | 1450 | 70 | 68 | ||
| CQP219-50/20-※ | 50 | 1830 | 1770 | 85 | 83 | ||
| Model | Volume (L) | Dimensions (mm) | Connection thread | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|
| Type A | Type B | M1 | M2 | Type A | Type B | ||
| CQP219-10/31.5-※ | 10 | 560 | 490 | Type I: M60×2 Type II: M30×1.5 | M30×1.5-6H (Φ38×3.1) | 28 | 27 |
| CQP219-16/31.5-※ | 16 | 760 | 700 | 40 | 39 | ||
| CQP219-25/31.5-※ | 25 | 1060 | 990 | 58 | 57 | ||
| CQP219-32/31.5-※ | 32 | 1300 | 1240 | 73 | 73 | ||
| CQP219-40/31.5-※ | 40 | 1560 | 1500 | 89 | 88 | ||
| CQP219-50/31.5-※ | 50 | 1900 | 1840 | 110 | 109 | ||
| Model | Volume (L) | Dimensions (mm) | Connection thread | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|
| Type A | Type B | M1 | M2 | A | B | ||
| CQP299-32/20-※ | 32 | 800 | 720 | Type I: M80×2 ΦD1=50 ΦD2=60 Type II: M60×2 ΦD1=80 ΦD2=70 | M42×2-6H (O-ring Φ50×3.1) | 59 | 57 |
| CQP299-40/20-※ | 40 | 920 | 860 | 70 | 69 | ||
| CQP299-50/20-※ | 50 | 1090 | 1030 | 84 | 83 | ||
| CQP299-63/20-※ | 63 | 1310 | 1250 | 103 | 102 | ||
| CQP299-72/20-※ | 72 | 1460 | 1400 | 116 | 114 | ||
| CQP299-80/20-※ | 80 | 1600 | 1530 | 127 | 125 | ||
| CQP299-100/20-※ | 100 | 1940 | 1870 | 156 | 154 | ||
| Model | Volume (L) | Dimensions (mm) | Connection thread | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|
| Type A | Type B | M1 | M2 | A | B | ||
| CQP299-32/31.5-※ | 32 | 830 | 760 | Type I: M80×2 ΦD1=50 ΦD2=60 Type II: M60×2 ΦD1=80 ΦD2=70 | M42×2-6H (O-ring Φ50×3.1) | 80 | 78 |
| CQP299-40/31.5-※ | 40 | 970 | 910 | 96 | 95 | ||
| CQP299-50/31.5-※ | 50 | 1150 | 1080 | 116 | 114 | ||
| CQP299-63/31.5-※ | 63 | 1380 | 1320 | 141 | 140 | ||
| CQP299-72/31.5-※ | 72 | 1540 | 1480 | 159 | 158 | ||
| CQP299-80/31.5-※ | 80 | 1690 | 1620 | 176 | 174 | ||
| CQP299-100/31.5-※ | 100 | 2040 | 1980 | 215 | 214 | ||
| Model | Nominal Pressure (MPa) | Volume (L) | Dimensions (mm) | Connection thread | Weight (Kg) | |||
|---|---|---|---|---|---|---|---|---|
| Type A | Type B | M1 | M2 | A | B | |||
| CQP351-63/※-※ | 20/31.5 | 63 | 1100 | 1030 | Type I: M115×3 ΦD1=75 ΦD2=85 Type II: M80×2 ΦD1=115 ΦD2=90 | M42×2-6H (O-ring Φ50×3.1) | 155 | 153 |
| CQP351-80/※-※ | 80 | 1320 | 1250 | 189 | 185 | |||
| CQP351-100/※-※ | 100 | 1580 | 1510 | 229 | 226 | |||
| CQP351-125/※-※ | 125 | 1900 | 1840 | 279 | 277 | |||
| CQP351-140/※-※ | 140 | 2090 | 2020 | 310 | 300 | |||
| CQP351-150/※-※ | 150 | 2230 | 2160 | 331 | 327 | |||
| CQP351-180/※-※ | 180 | 2620 | 2550 | 391 | 388 | |||
| CQP351-200/※-※ | 200 | 2880 | 2810 | 432 | 428 | |||
| CQP351-250/※-※ | 250 | 3520 | 3470 | 532 | 530 | |||
Matters needing attention of CQP Niteogen Tank
1.Gas container should not be fixed by welding type or riveting type.
2.Be sure that there is no gas leakage after installed.
3.The gas bottle should carry on the inspection regularly according to the stipulation
4.The oxygen gas and other tindery and explosive gases are forbidden.
5.Full type code is needed when booking.For example: the gas bottle of operating pressure:20MPa,nominal volume:16L,diameter:219mm,structure type: double end.CQP219-16/20-A.
