NX Accumulator
fixing clamp
The accumulator fixing clamp is a professional device specially designed for fixing the accumulator. It has the characteristics of compact structure, flexible connection and beautiful appearance.
Advantages
of
NX Accumulator fixing clamp
Compact Structure
Space-saving design allows easy installation in tight or confined setups.
Flexible Connection
Adjustable mounting ensures compatibility with different accumulator sizes.
Secure Fixing
Provides stable support, reducing vibration and improving system safety.
Clean Appearance
Well-designed structure offers neat, professional, and visually appealing installation.
Ordering Code & Technical Parameter You Can Choose
NX-KG
Code Name
Hoop for accumulator
ɸ※
Diameter:
ɸ89~ɸ426
| Model | A | B | C | ΦD | ΦD1 | E | F | L | Matching accumulator model | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| NX-KG/Φ89 | 112 | 76 | 110 | Φ89 | Φ9 | 62.5 | 20 | 150 | NXQ-0.4L ~ 0.63L | 0.3 |
| NX-KG/Φ114 | 137 | 100 | 138 | Φ114 | Φ9 | 75 | 20 | 176 | NXQ-1L | 0.4 |
| NX-KG/Φ152 | 177 | 126 | 186 | Φ152 | Φ11 | 96 | 20 | 212 | NXQ-1.6L ~ 6.3L | 0.5 |
| NX-KG/Φ219 | 248 | 196 | 260 | Φ219 | Φ13 | 133 | 30 | 306 | NXQ-10L ~ 40L | 1.1 |
| NX-KG/Φ299 | 328 | 276 | 350 | Φ299 | Φ13 | 173 | 30 | 385 | NXQ-20L ~ 100L | 1.5 |
| NX-KG/Φ351 | 396 | 330 | 405 | Φ351 | Φ15 | 212 | 40 | 442 | NXQ-63L ~ 160L | 3 |
| NX-KG/Φ426 | 456 | 403 | 478 | Φ426 | Φ15 | 237 | 40 | 518 | NXQ-100L ~ 250L | 3.9 |
The full name of the model code must be stated when ordering, such as: the accumulator has a nominal volume of 25L and a diameter of 0299. Clamp: NX-KG/Φ299. (Include rubber pad).
If there are special requirements for the clamp, please consult with our company.
The company reserves the right to change the design without prior notice.

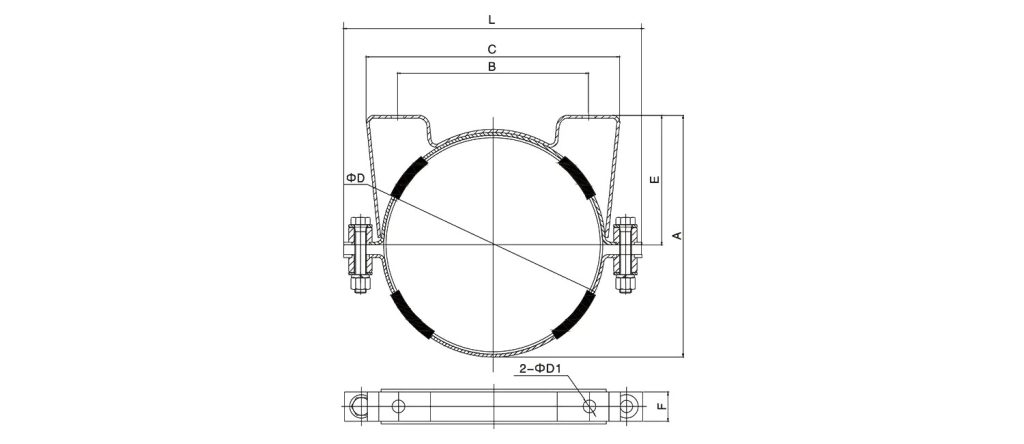

Internal Structure Dimension of
NX Accumulator fixing clamp
Why Choose Us
We have our own production workshops and warehouses, equipped with complete production and quality testing equipment.
After-sales Service
We provide professional, accurate, patient, and efficient solutions to your hydraulic accumulator manufacturing problems.
Customer Philosophy
Our company's customer philosophy is to create irreplaceable value for our customers through high-quality products and services.
Manage
Philosophy
Our management belief is to respect value and pursue a management philosophy of autonomy and self-motivation.
High-quality Products
Innovation adds value to our products. We have a strong R&D team with the strength to face challenges and bring our ideas to market.
Qualification Certificate
Learn more about cooperation
Contact Us Now
FAQ
The following are solutions to common problems. If you have further technical questions, please feel free to contact us.
Q1: What is the main function of an accumulator?
A: An accumulator stores hydraulic energy in the form of pressurized fluid. It helps maintain system pressure, absorb shocks, and provide additional flow during peak demand or emergency situations.
Q2: What are the common types of accumulators?
A: The most common types are bladder, piston, and diaphragm accumulators. Each type differs in structure and is selected based on pressure requirements, capacity, and application conditions.
Q1: What is included in an accumulator station?
A: An accumulator station typically includes the accumulator unit, pump, motor, control valves, pressure gauges, safety components, and a hydraulic reservoir, all integrated into a single system.
Q2: Why is an accumulator station important in hydraulic systems?
A: It stabilizes pressure, reduces energy consumption, minimizes pump wear, and ensures reliable system performance during fluctuating load conditions.
Q1: What are common accumulator accessories?
A: Common accessories include safety blocks, shut-off valves, pressure gauges, charging kits, mounting brackets, and protective covers, all of which support safe operation and maintenance.
Q2: Why are accessories necessary for accumulators?
A: Accessories enhance safety, enable proper monitoring, simplify maintenance, and ensure the accumulator operates efficiently and within design limits.
Q1: What is the function of a safety valve block?
A: A safety valve block protects the accumulator and system by controlling pressure, isolating the accumulator when needed, and safely releasing excess pressure.
Q2: What components are typically found in a safety valve block?
A: It usually includes a relief valve, shut-off valve, pressure gauge port, and sometimes a drain or discharge valve, all integrated into a compact unit for safety and convenience.
