Bladder accumulators are typically designed for vertical mounting, which is also the recommended installation orientation for most hydraulic systems. Vertical mounting helps maintain the correct position of the bladder, prevents deformation, and ensures smooth operation over long periods. However, in some cases, bladder accumulators can be mounted horizontally, but this is not ideal and requires special attention. With horizontal mounting, the bladder may sag or rub against the inner shell, leading to uneven wear, reduced efficiency, and shortened service life.
If horizontal mounting is necessary due to space constraints, suitable supports must be used, or a model specifically designed for horizontal mounting must be selected. Some manufacturers offer improved versions that can accommodate this installation method. While horizontal mounting is feasible, vertical mounting is recommended to ensure optimal performance, durability, and safety. For example, Ningbo ChaoRi’s Bladder Accumulator Station is small, so you can install it in different ways.
Mounting Options for Bladder Accumulators
There are two main ways to mount bladder hyd accumulators. You can put them up and down, or you can lay them sideways. Each way changes how the bladder works and how you set it up.
Vertical Mounting Standard

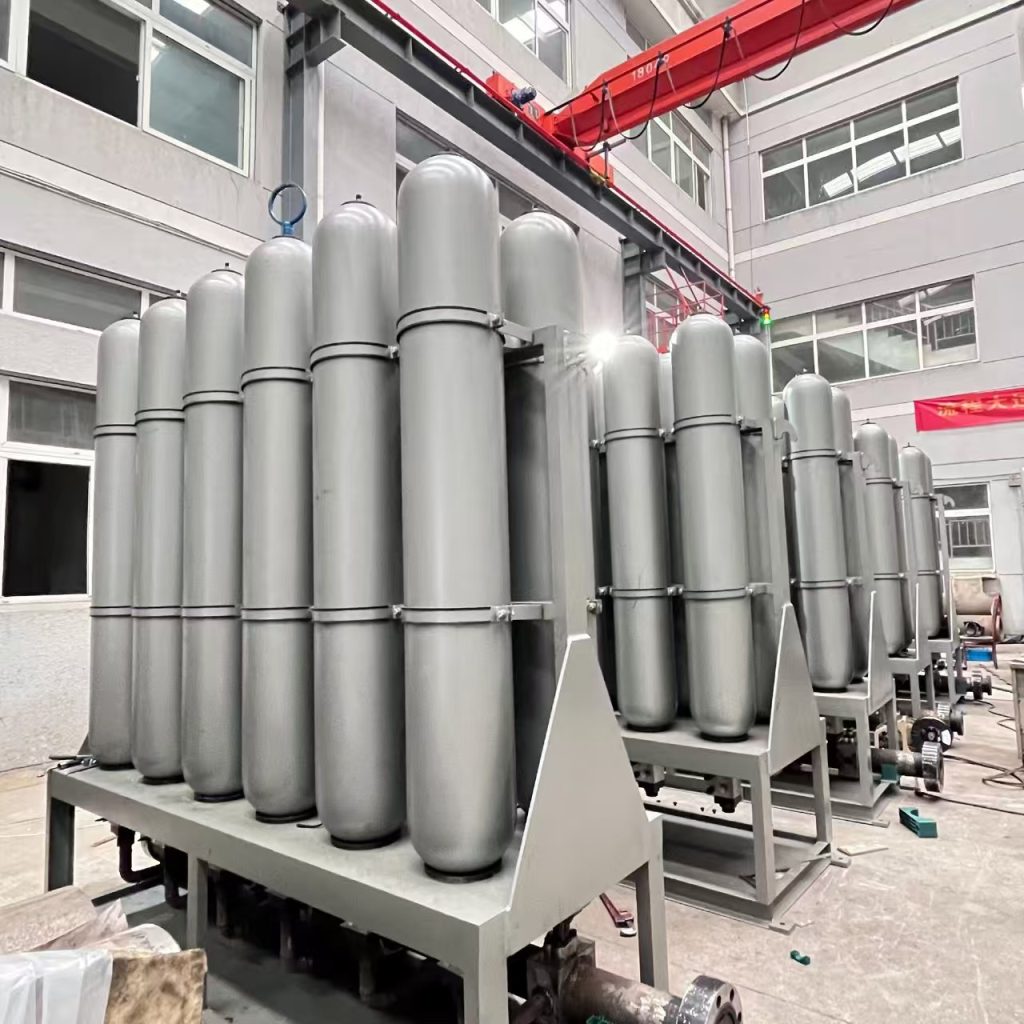

Most people say you should stand bladder accumulators rank up. This helps keep the gas and fluid apart. The bladder works better and lasts longer this way. It is also easier to check and fix the unit when it stands up. You use mounting bases or collars to hold it steady. This keeps the accumulator safe and does not let it move.
Tip: If you want the best results, stand the accumulator up.
Here is a table that shows how vertical and horizontal mounting are different:
| Mounting Option | Advantages | Disadvantages |
|---|---|---|
| Vertical | Best gas and fluid separation, works better | No big problems |
| Horizontal | Fits in small spaces | May not work as well, can wear out faster |
Horizontal Mounting Possibility
Sometimes, you have to lay the accumulator sideways if there is not much room. This helps you fit it in tight places. Ningbo ChaoRi’s Bladder Accumulator Station is small, so you can put it in many spots. Laying it sideways can make things easier, but the bladder might wear out unevenly. You might not be able to use all the space inside. Make sure to check what your system needs before you pick this way. Always use the right bases and collars to keep it safe.
Note: Sideways mounting is good for small spaces, but you should check the unit often to make sure it is working well.
Manufacturer Guidelines for Accumulators
Recommended Mounting Practices
You should always follow the manufacturer’s instructions when you put in bladder accumulators. Most companies say to stand the accumulator up straight. This helps the bladder stay strong and keeps gas and fluid apart. Using the right mounting equipment helps your system last longer. Ningbo ChaoRi gives clear steps for mounting. You can pick vertical or horizontal mounting, but you must use the right mounting bases and collars. If you do these things, your warranty stays good and your system works well.
Tip: Always read the manual before you start mounting. This helps you not make mistakes and keeps your system safe.
Ningbo ChaoRi’s Bladder Hydraulic Accumulator Station has certifications like ISO9001 and ASME. These show the product is made to high standards. You can also ask for special options to fit your needs. This makes it easier to match the accumulator to your system.
Hardware and Accessories
You need special mounting equipment to put in accumulators. Manufacturers say to use mounting collars and mounting bases. These parts keep the accumulator steady and stop it from moving. You can also use clamps or consoles for more support. The right hardware keeps the bladder safe and helps the accumulator work well.
Here is a table that shows common mounting equipment:
| Mounting Equipment | Purpose |
|---|---|
| Mounting collars | Hold accumulator in place |
| Mounting bases | Support and stabilize |
| Clamps | Extra security |
| Consoles | Added support |
You should always use the mounting equipment that fits your accumulator. This keeps your system safe and makes it easier to fix. If you have questions, you can ask Ningbo ChaoRi for help or special solutions.
Bladder Accumulators: Performance and Safety
Efficiency and Fluid Flow
You certainly want your hydraulic system to function well. The way an accumulator is installed affects how it works. If the accumulator is placed vertically, the gas and liquid remain separated. This helps extend the accumulator’s lifespan and ensures smooth system operation. If it’s placed horizontally, the gas may diffuse unevenly. This alters the liquid flow and can potentially accelerate accumulator wear.
You should always consider how the installation method affects internal fluid flow. Good fluid flow means your system runs quickly and safely.
Maintenance and Access
You need to check and fix your accumulators sometimes. How you mount them can make this easy or hard. Standing the unit up gives you better access to the bladder and valves. You can look at and change parts without much trouble. Laying it sideways can make it harder to reach some parts, especially if there is not much space.
Tip: Plan where you put the unit so you can reach all parts for checks.
Using the right hardware, like u-bolts, keeps the accumulator steady. This makes checking and fixing it safer and quicker.
Safety Considerations
Safety is very important when you use bladder accumulators. How you mount the unit changes how safe it is. Standing the unit up makes leaks easier to see and lowers the risk. You should always use strong supports and follow the manufacturer’s steps. Using the right mounting equipment protects the bladder and the whole system.
A table can help you see the main safety points:
| Safety Factor | Vertical Mounting | Horizontal Mounting |
|---|---|---|
| Leak Detection | Easier | Harder |
| Access for Repairs | Better | Limited |
| Stability | High | Needs extra care |
You should always follow safety rules and check your system often. This keeps your equipment working well and keeps everyone safe.
Best Practices for Mounting and Installation
Choosing the Right Orientation
Think about what your system needs before you pick how to mount it. Most experts say to stand bladder accumulators up. This keeps gas and fluid apart. Your equipment works better and lasts longer. Sometimes, you must lay it sideways if space is tight. Always use mounting collars and bases to hold it steady. You can add u-bolts for more support. Picking the right way keeps your system safe and makes fixing it easier.
Tip: Standing the accumulator up is best for most uses. It helps your unit work well and last longer.
Installation Tips
You want your mounting and installation to be safe and easy. Here are some tips to help you:
- Always let out pressure before you start any work.
- Only use nitrogen gas for precharging. Never use oxygen or other gases.
- Check the precharge pressure when you install it. Check it every day for the first week, then every week, and later every three to six months.
- Use mounting collars and bases to keep the accumulator steady. This stops it from moving or shaking.
- Put in isolation valves and drainage systems. These make fixing and checking safer and easier.
- Keep your hydraulic fluid clean. Dirty fluid can hurt your accumulator.
- Do regular fluid checks to find problems early.
Note: Doing these steps helps stop accidents and keeps your equipment working well.
When to Consult the Manufacturer
Contact the manufacturer if you are not sure about mounting or installation. Every system is different. Ningbo ChaoRi can help you pick the right mounting collars, bases, or special solutions. Ask for help if you need special hardware or have a small space. The manufacturer gives advice that fits your system and keeps your warranty good.
Callout: Talking to the manufacturer helps you avoid mistakes and keeps your system safe.
FAQ
Can I mount a bladder accumulator horizontally?
Yes, you can put it sideways. You need to check it often. Always use strong mounting hardware. This keeps your system safe. It also helps the bladder last longer.
What is the best gas for precharging a bladder accumulator?
You should always use nitrogen gas for precharging. Do not use oxygen or other gases. These can be dangerous. Nitrogen keeps your system safe. It also protects the bladder.
How often should I check the precharge pressure?
Check the precharge pressure every day for the first week. After that, check it once a week. Later, check it every three to six months. Checking often helps you find problems early.
What mounting hardware do I need?
| Hardware | Use |
|---|---|
| Mounting collars | Hold accumulator |
| Bases | Support and stabilize |
| Clamps | Extra security |
You must use the right hardware for your unit.
Who can help with special installation needs?
You can ask Ningbo ChaoRi for expert advice. Their team can help you pick the best mounting options and hardware for your system.
