You use a piston accumulator to save and give back energy in hydraulic systems. Many industries use it. Chaori Hydraulic has many years of experience. They give strong solutions that help you run big machines. They also help you control how fluids move and keep things working well. Many fields need this technology, like construction, farming, oil and gas, and big machines. As more people need it around the world, safety, trust, and making it fit your needs matter even more for your tools.
Key Takeaways
- Piston accumulators keep energy and help control pressure in hydraulic systems. This makes machines work better and last longer. These accumulators are very important in many industries like construction, farming, and energy. They help keep things steady and absorb shocks. When you pick a piston accumulator, think about how much pressure it can handle. Also, check if it works in the right temperature and stores enough energy for your system. Chaori Hydraulic lets you choose piston accumulators that fit your needs. You can pick the size and material you want for your job. It is important to take care of piston accumulators. You should check the seals and pressure often to keep them safe and working well for a long time.

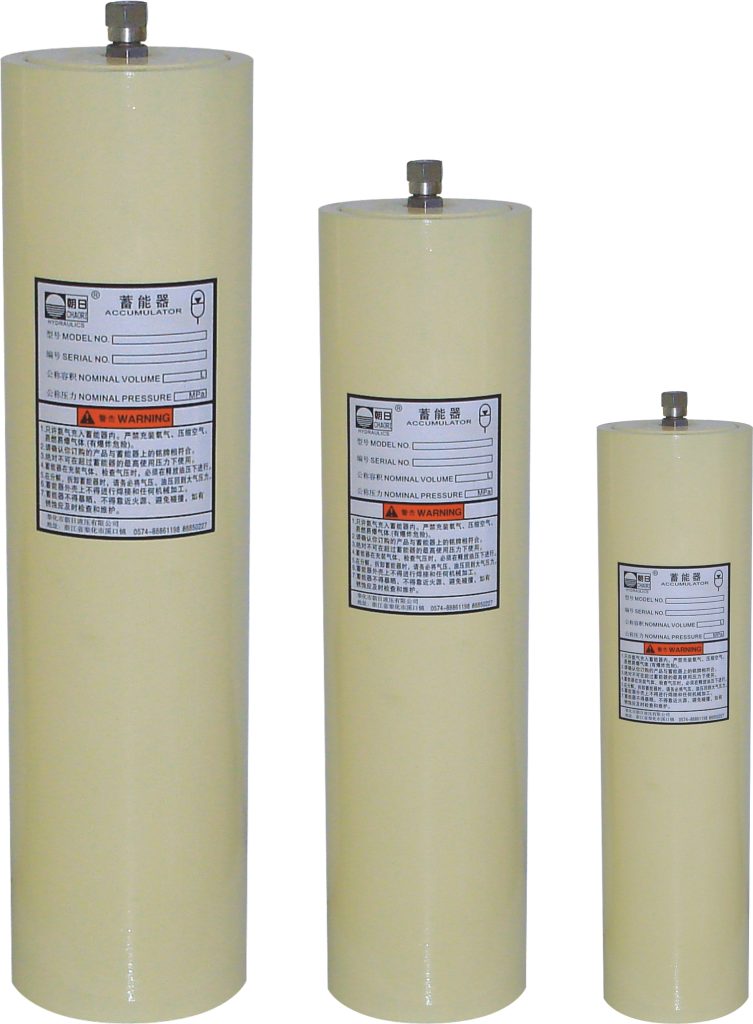

What Is a Piston Accumulator
Basic Definition and Function
A piston accumulator helps store energy and control pressure in a hydraulic system. It has a piston that moves to keep nitrogen gas and hydraulic fluid apart. When your system needs more power, the piston moves and gives out the saved energy. The piston accumulator helps keep pressure steady, even if there are leaks or sudden changes.
Here are the main jobs of a piston accumulator in hydraulic systems:
- Saves energy for later so machines run better.
- Keeps pressure even when it suddenly drops or goes up.
- Makes the system work better by letting you control pressure exactly.
Chaori Hydraulic is a trusted company with over 47 years of work. Their piston accumulator models, like the HXQ series, can handle high pressure and hold a lot. Some can hold up to 1,500 liters of oil and work with pressures up to 3,000 PSI. These features make them great for tough industrial work.
Key Components and Structure
A piston accumulator is simple but strong. Inside, there is a metal piston in a cylinder. Nitrogen gas is on one side, and hydraulic fluid is on the other side. When pressure gets higher, the piston moves to save or give out energy.
Piston accumulators are reliable because their design is strong. They do not have tricky electronic parts. The piston just moves inside the cylinder. There is no software or sensors that can break. This makes them work well every time.
Most piston accumulators use carbon-steel for normal jobs. If you need to work in rough or rusty places, you can pick stainless-steel ones. Chaori Hydraulic uses special pressure-vessel steel for the cylinder shell. This helps the seals last longer and keeps the system safe when pressure is high.
How Piston Accumulators Work
Operating Principle
A piston accumulator is like a battery for energy in a hydraulic system. When hydraulic fluid goes into the accumulator, it pushes a piston. Nitrogen gas sits on the other side and gets squeezed. This stores energy for later use. You can use this energy when your system needs more power or when pressure drops.
Here is a simple table that shows how piston accumulators and bladder accumulators are different:
| Type | Working Principle | Structural Form |
|---|---|---|
| Piston Accumulator | Stores energy by squeezing a piston with hydraulic fluid in a sealed container. | Has a container, a piston, and a gas cushion. |
| Bladder Accumulator | Uses a soft membrane to keep gas and fluid apart, and expands to store energy. | Has a container and a soft membrane that grows with fluid. |
Piston accumulators use a piston to hold energy. Bladder accumulators use a soft membrane. Piston accumulators are good for jobs with high pressure and small amounts. Bladder accumulators work well for jobs with lots of fluid and low pressure.
Gas and Fluid Separation
The piston accumulator works well because it keeps gas and fluid apart. The piston moves inside the cylinder and always separates the nitrogen gas from the hydraulic fluid. This design stops sudden failures. If something starts to go wrong, you get a warning. You can fix the problem before your system shuts down.
Chaori Hydraulic’s piston accumulators have important features:
- Piston seals keep gas from leaking and separate fluid and gas.
- Wear rings help the piston stay in place and cut down friction.
- Static seals hold both fluid and gas so energy does not escape.
This careful separation keeps your system safe and reliable. Diaphragm accumulators can fail quickly, but piston accumulators let you plan repairs and avoid losing time. For example, if a diaphragm accumulator fails, it can cause expensive stops. A piston accumulator fails slowly, so you can keep your system running.
Chaori Hydraulic uses strong seals and tests their products for safety. You can trust their accumulators to work well, even in tough places.
Applications of Piston Accumulators
You can find piston accumulators in many industries. They are strong energy storage units. They help control pressure and store energy. They also protect your hydraulic system. The HXQ series from Chaori Hydraulic works well and can be changed to fit your needs.
Industrial Machinery and Automation
Factories and robots use piston accumulators. They help save energy and keep machines working well. When a machine needs more power, the accumulator gives extra energy. This helps the production line stay fast and steady.
Here is a table that shows how piston accumulators help different jobs:
| Application Sector | Performance Improvements |
|---|---|
| Manufacturing | Saves energy and controls cycles for better products. |
| Construction | Handles heavy loads and gives extra power when needed. |
| Agriculture | Keeps machines working well on different land and loads. |
| Marine | Makes ship systems steady and powers important tools. |
| Renewable Energy | Used for wind turbines and emergency jobs. |
These energy storage units help many fields do better work. The HXQ series can handle high pressure and big jobs. It is good for large machines and fast factories.
Mobile Equipment and Construction
You can find piston accumulators in trucks, cranes, and farm machines. They help machines by keeping pressure even and taking in shocks. This means your equipment lasts longer and works safely, even on bumpy ground.
Here are some main benefits of using these energy storage units in moving machines:
- Great performance: The floating piston keeps pressure even and gives smooth control.
- Long life: The strong design lets you use it for hard jobs.
- Shock absorption: The piston accumulator protects machines from bumps.
- Better stability: Drivers feel safer and more comfortable.
Piston accumulators also stop problems like pressure loss, dirt, and damage from stress. You can trust the HXQ series to work well, even in tough places.
Energy, Oil & Gas, and Marine
Piston accumulators are used in big hydraulic systems for energy, oil and gas, and ships. These jobs need high pressure and big energy storage. The accumulator stores energy, controls pressure, and keeps the system safe.
| Application Sector | Typical Use |
|---|---|
| Energy | Big hydraulic systems |
| Oil & Gas | High-pressure jobs |
| Marine | Keeps pressure steady on ships |
Piston accumulators often work at 50 to 750 bar. This makes them good for both easy and hard jobs. In oil and gas, you need safe equipment. Chaori Hydraulic’s products have ASME and CE safety marks, so you know they are safe.
Note: For offshore and energy jobs, you must use accumulators that follow rules like ASME Section VIII Div 1 and PED. These rules make sure your energy storage units can handle high pressure and keep your system safe.
Specialized Hydraulic Systems
You can see piston accumulators in special jobs like planes, defense, and robots. These jobs need custom solutions. Chaori Hydraulic lets you pick the size, material, and seals. This helps you use the accumulator in small spaces or very hot or cold places.
- Small designs fit in planes and satellites.
- High heat tolerance lets you use them in hot or cold.
- Fast response helps you control pressure quickly.
- Strong seals and materials keep your system working, even with little care.
Some systems need telemetry to check them in real time. You can ask Chaori Hydraulic to add this to your energy storage units.
Tip: If you need a piston accumulator for a special job, talk to Chaori Hydraulic. Their team can help you pick the right size, material, and features for your system.
Piston accumulators give you many good things in high-pressure and big energy systems. They help save energy, protect your machines, and keep them running longer. You can use them for backup power, shock absorption, or to make your system quieter and smoother.
Selecting the Right Piston Accumulator
Key Selection Criteria
When you pick an accumulator, you need to think about a few things. First, check the pressure capability. The accumulator must handle the highest pressure in your system. Some models work up to 400 bar. This is good for heavy-duty machines. Next, look at the temperature tolerance. Make sure it works in hot or cold places. Some can handle -40°C to +150°C. You also want long-term reliability. Strong seals keep gas and fluid apart. This helps your system work well for a long time. For energy storage efficiency, choose a design that uses most of the gas. This lets you store and use more energy. The material is important too. Strong materials help the accumulator last longer, especially in tough places.
Application-Specific Considerations
Every job is different. You need to match the accumulator to your work. First, check the energy storage capacity. Pick a size that fits your flow and pressure. Next, choose the type of accumulator you need. It could be piston, bladder, or diaphragm. Make sure the operating pressure matches your system. Check if the accumulator works with your hydraulic fluid. Think about the size and weight. Small units are good for moving machines. Big ones are better for machines that stay in one place. Plan where you will put it and how you will take care of it. Watch out for temperature changes, shaking, and rust.
Tip: If your machine shakes a lot or gets very hot or cold, pick an accumulator made for those tough jobs.
Chaori Hydraulic Product Highlights
Chaori Hydraulic has many choices for you. You can pick piston sizes from Ø80mm to Ø660mm. The volume can be as small as 0.5L or as big as 1,800L. The working pressure can go up to 350 bar or even higher if you ask. These accumulators work in temperatures from -30ºC to +80ºC. They can last for more than 1 million cycles. You can also choose special materials and custom ports.
| Feature | Details |
|---|---|
| Piston Sizes | Ø80mm – Ø660mm |
| Volumes | 0.5L to 1,800L |
| Working Pressure | 350bar (higher on request) |
| Working Temperature | -30ºC to +80ºC |
| Design Durability | Over 1 million cycles |
| Seal System | Made for reliability |
| Integration | Self-supporting modules |
| Special Materials | Customizable options |
| Ports | Customizable options |
If you do not know which model is best, you can ask Chaori Hydraulic’s experts. They will help you pick the right one for your project.
You can find these accumulators in factories, building sites, energy plants, and special machines. They help save energy, lower shocks, and keep things safe. Many people like them for these reasons:
- Save energy to give steady power.
- Work as backup in emergencies.
- Lower shaking and take in bumps.
- Help with leaks and changes in heat.
- Act fast when the system needs it.
Chaori Hydraulic is known for good quality and safety. The company has worked for over 40 years. They have a modern factory and worldwide safety certificates.
| Strength | Details |
|---|---|
| Quality | Trusted by important groups |
| Safety | ASME, CE, ISO 9001 approved |
| Customization | Many choices and expert help |
You should look at what your system needs and ask experts for advice. This helps you pick the best one for your job.
FAQ
What is a piston accumulator used for?
A piston accumulator stores energy in hydraulic systems. It also controls pressure and takes in shocks. This helps machines work better and stay safe in many jobs.
How do you choose the right piston accumulator?
You need to know your system’s pressure and temperature. You should also check how much energy you need to store. Look at the size and what it is made of. Make sure it has safety marks. If you are not sure, ask Chaori Hydraulic for help.
Can you use piston accumulators in mobile equipment?
Yes, you can use them in trucks and cranes. They also work in farm machines. Piston accumulators keep pressure even and take in bumps. They help protect your machines from getting hurt.
What makes Chaori Hydraulic’s piston accumulators reliable?
Chaori Hydraulic uses strong parts and good seals. They test their products to make sure they are safe. Their piston accumulators have ASME and CE safety marks. They last a long time and work well in hard jobs.
Do piston accumulators need regular maintenance?
Yes, you should check the seals and pressure often. You also need to look at the fluid levels. Doing this helps your piston accumulator stay safe and last longer.
